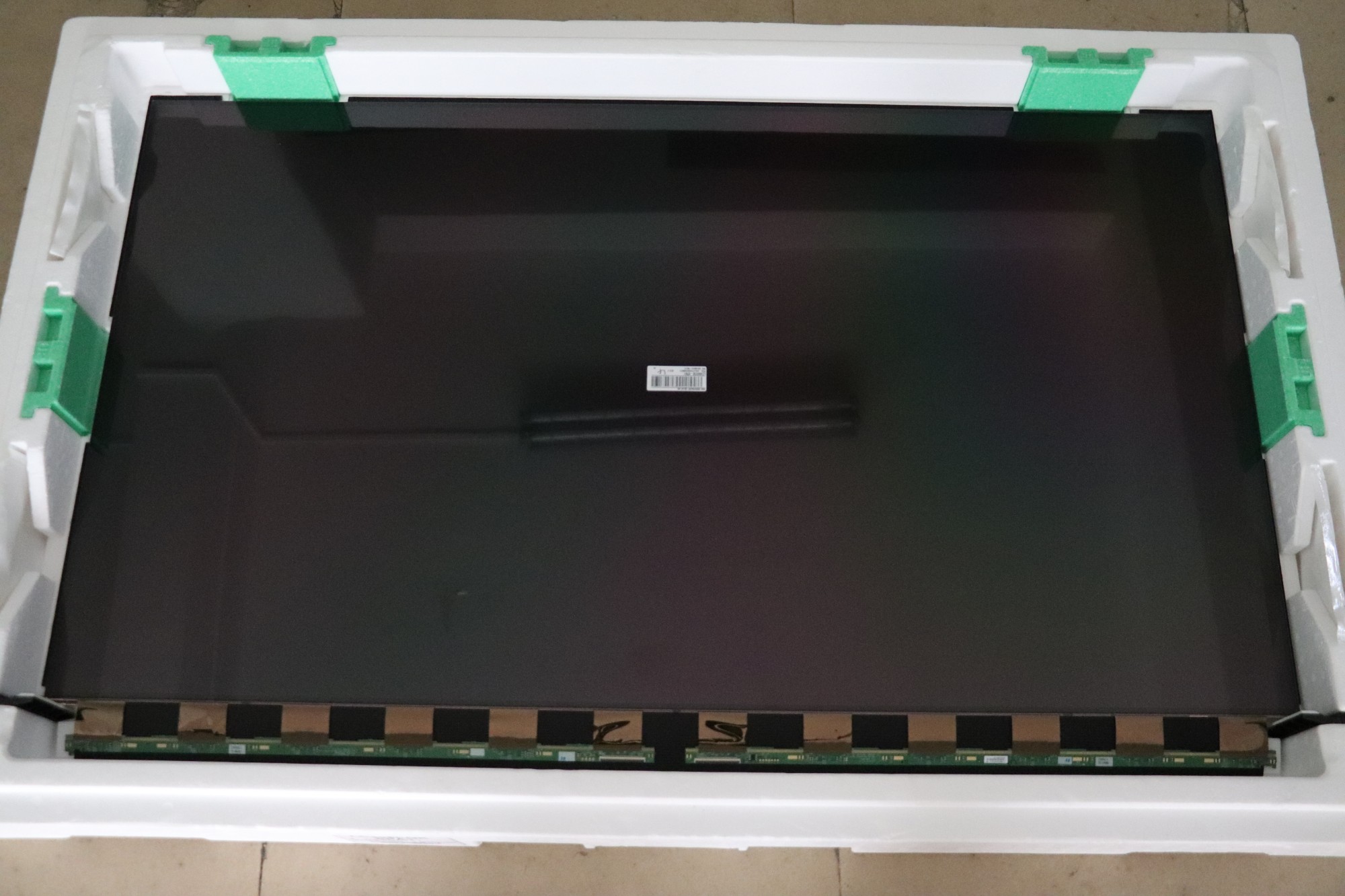

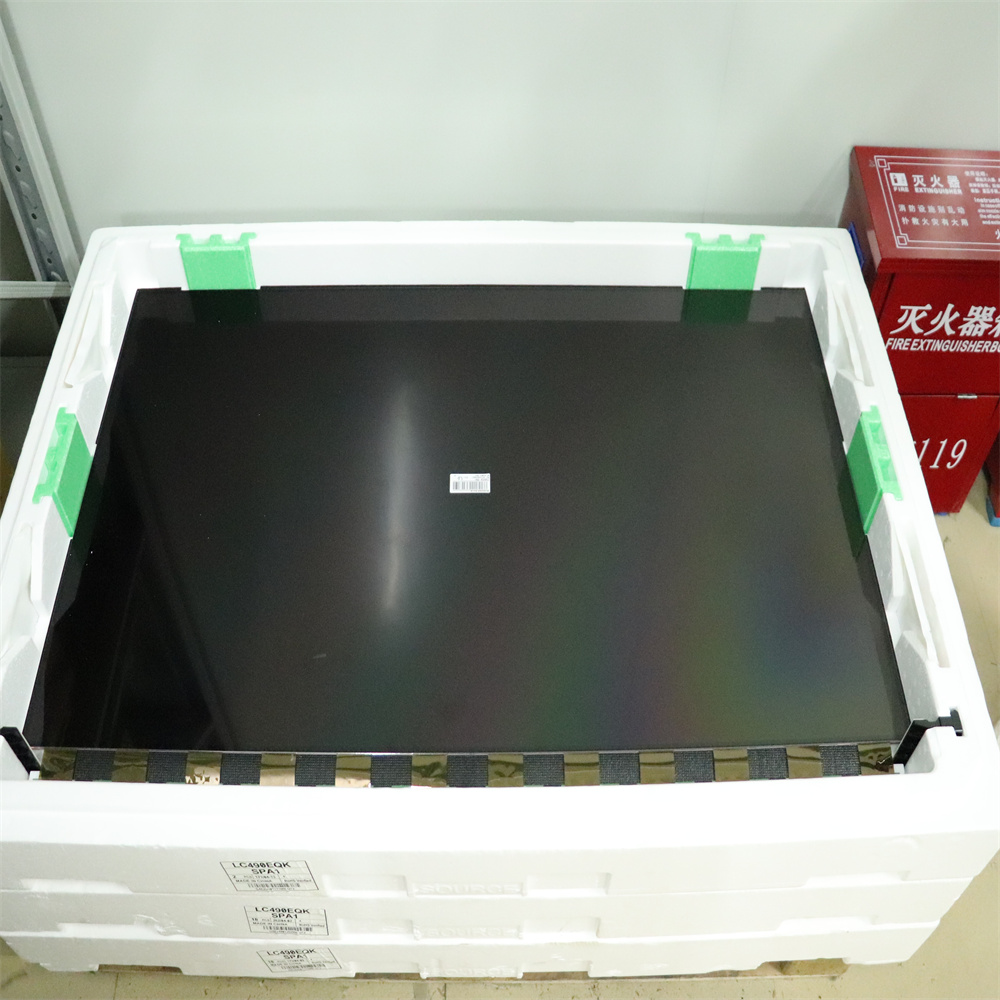

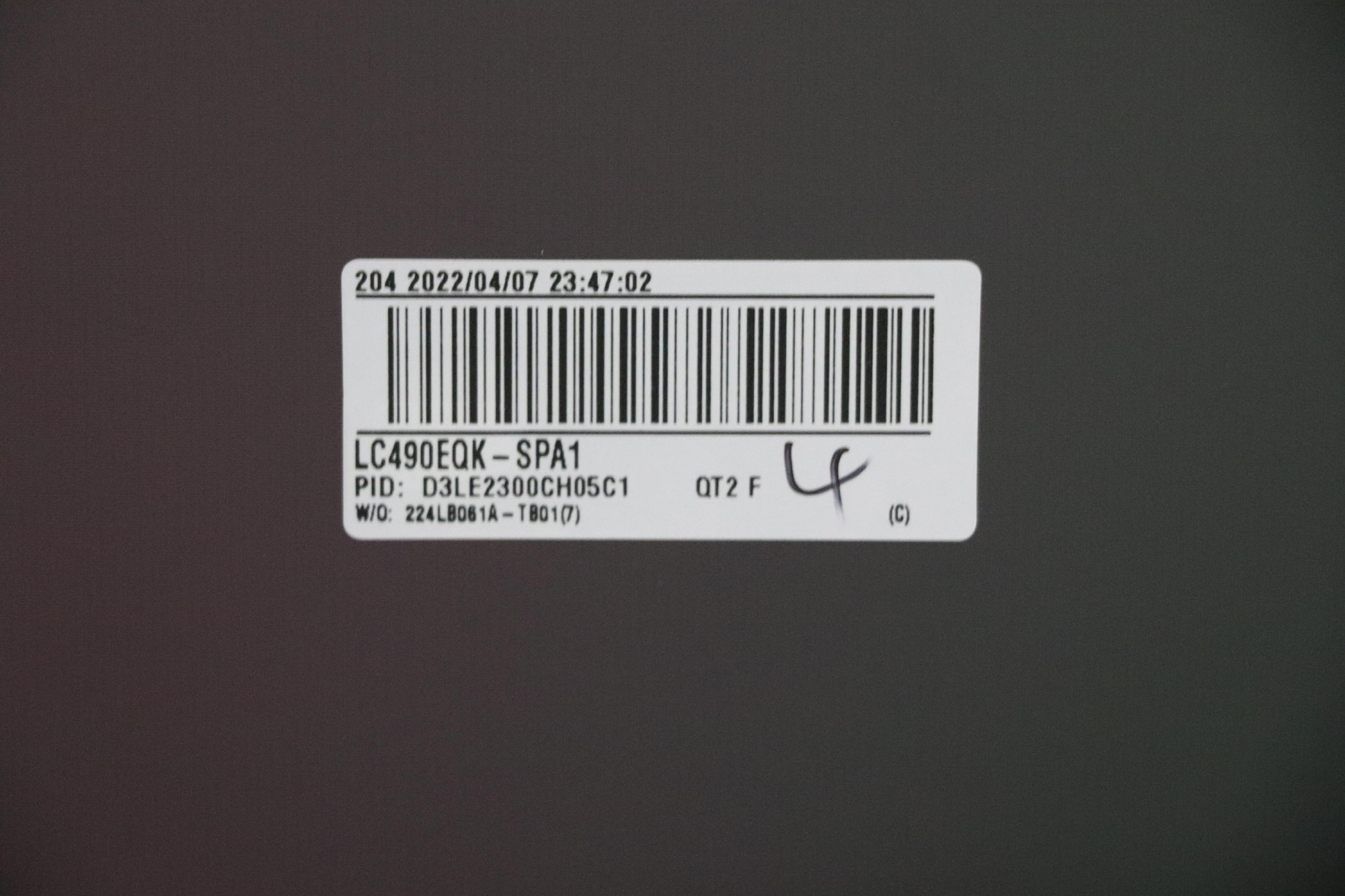

Model P/N:LC490EQK-SPA1
Diagonal Size:49"Panel
Typea-Si :TFT-LCD, CELL , FOB
Resolution:3840(RGB)×2160, UHD 90PPI
Pixel Format:RGB Vertical Stripe
Active Area:1073.78(W)×604(H) mmBezel Opening-
Outline Size1085.5(W)×617.7(H) ×1.2(D) mm
SurfaceAntiglare (Haze 3%), Hard coating (2H)
Brightness0 cd/m²
Contrast Ratio1300:1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Min.)(CR≥10)
Transmissivity：4.85% (Typ.)(with Polarizer)
Display Colors：1.07B 68%
NTSCLamp TypeNo B/L

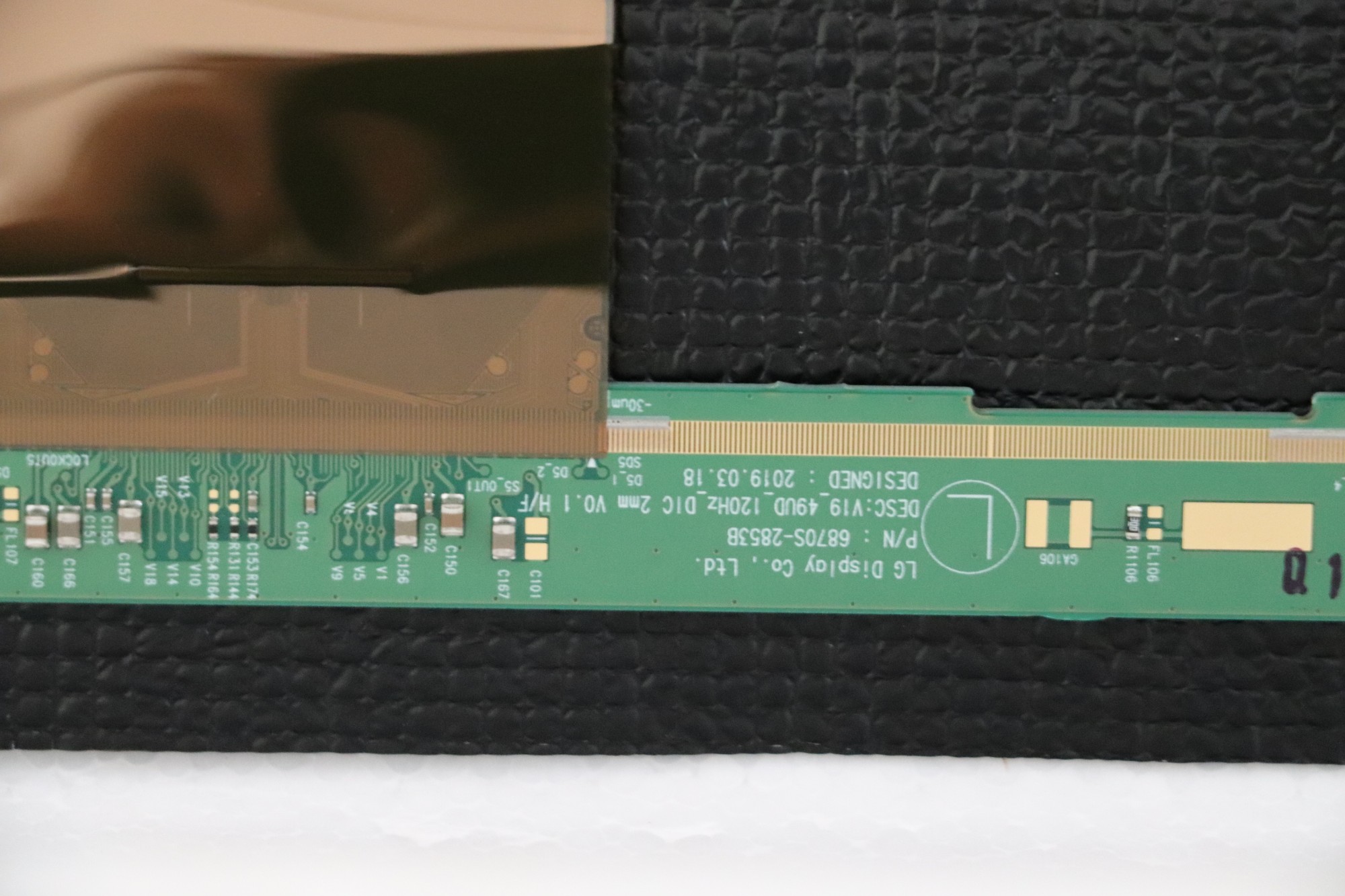

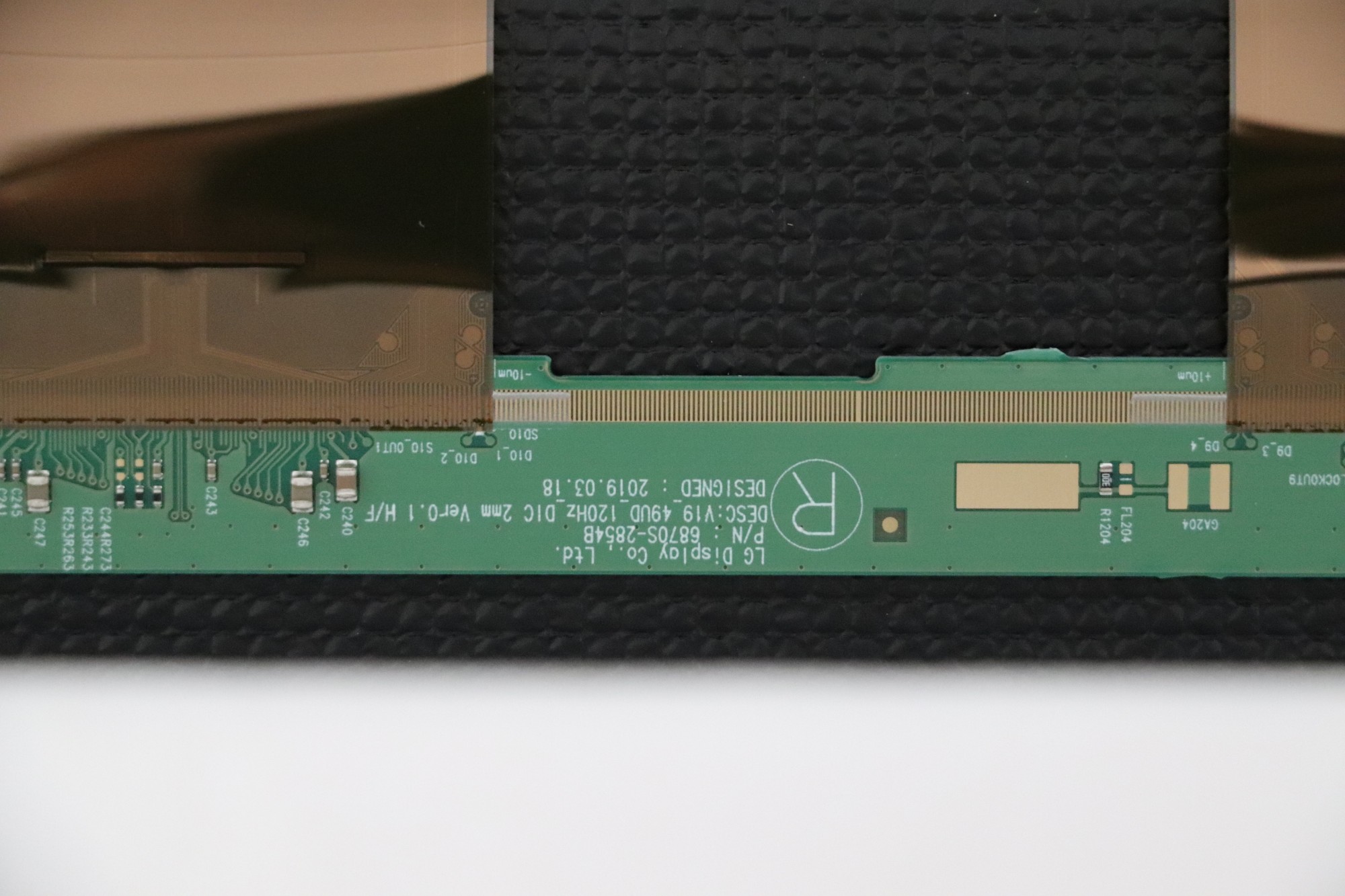

Driver IC ：COF Built-in 12 source chips
Panel Weight：2.000/2.10Kgs (Typ./Max.)
ApplicationTV Sets
Signal InterfaceV-by-One 16 lane , 92 pins Connector
Input Voltage：12.0V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
