Panel Brand
|
For LG Display
|
|
Panel Model
|

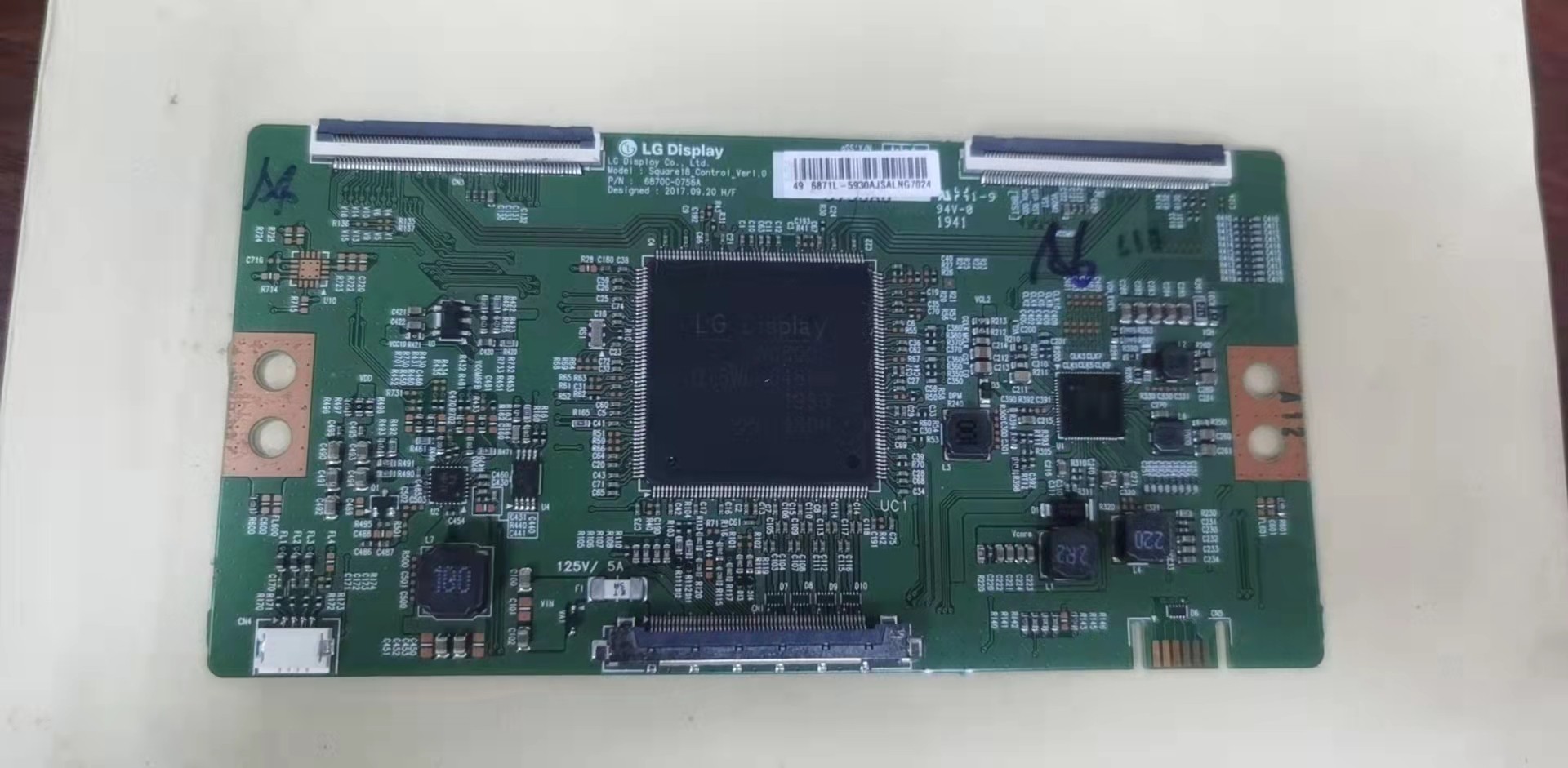

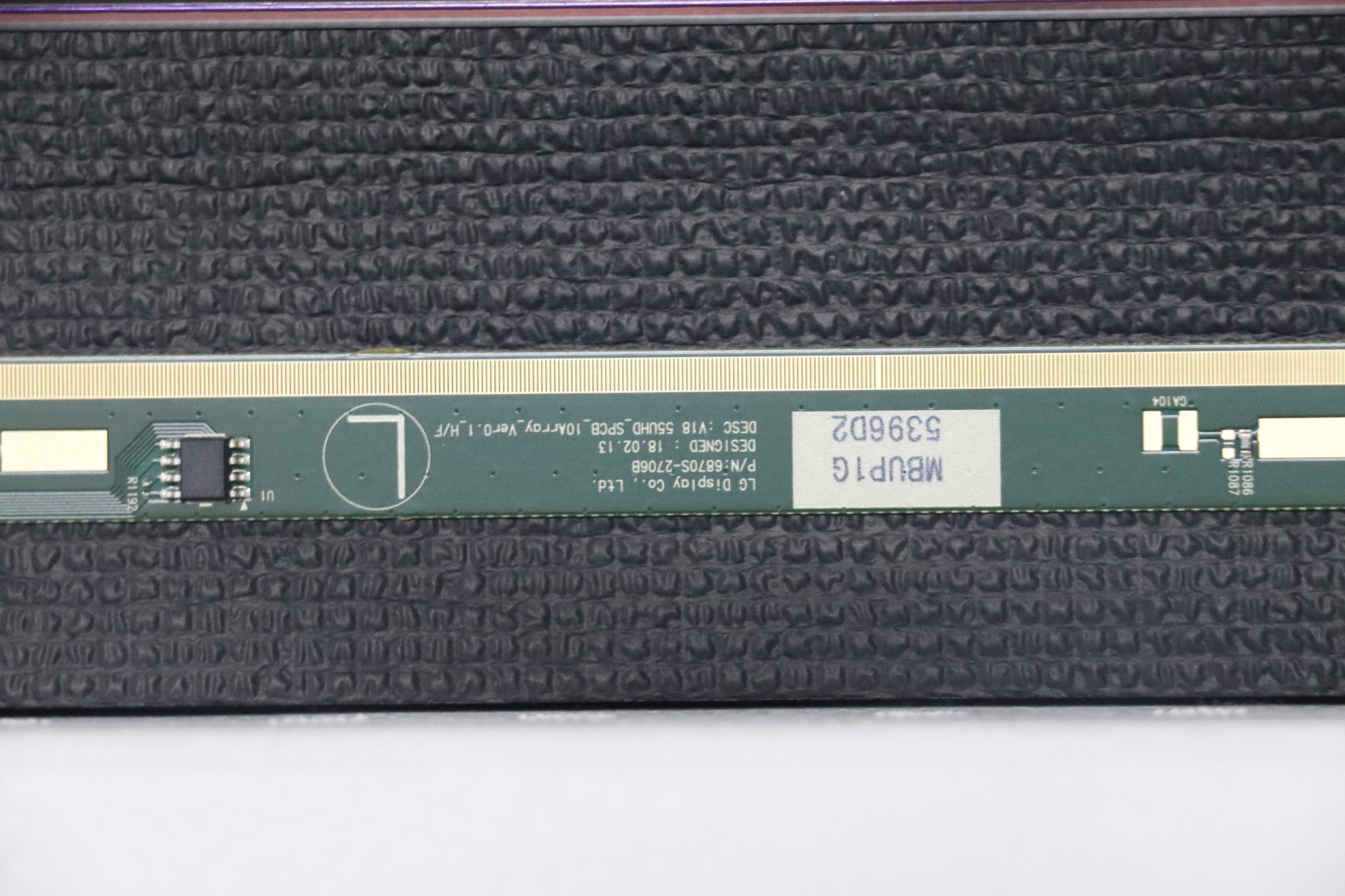

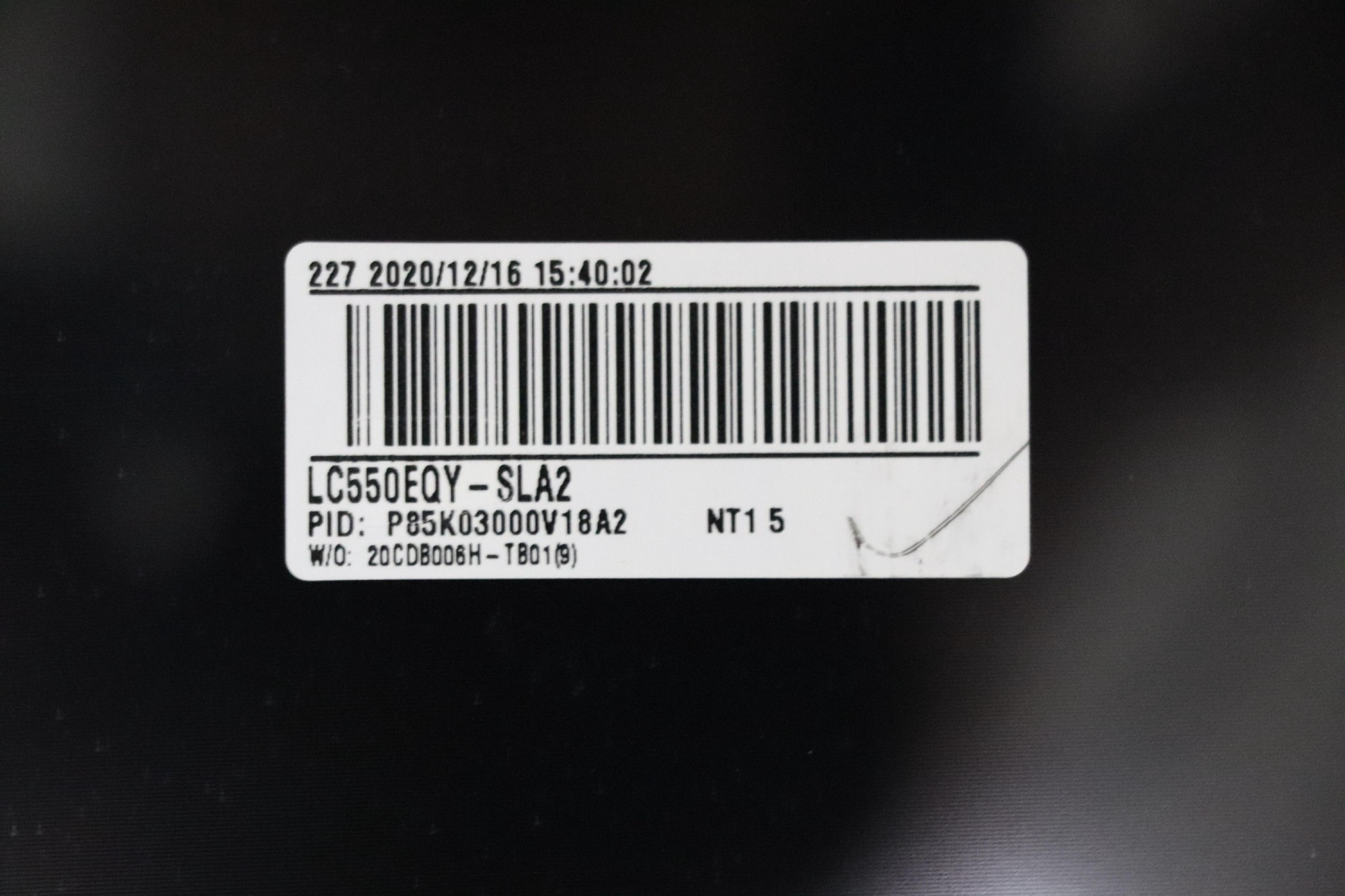

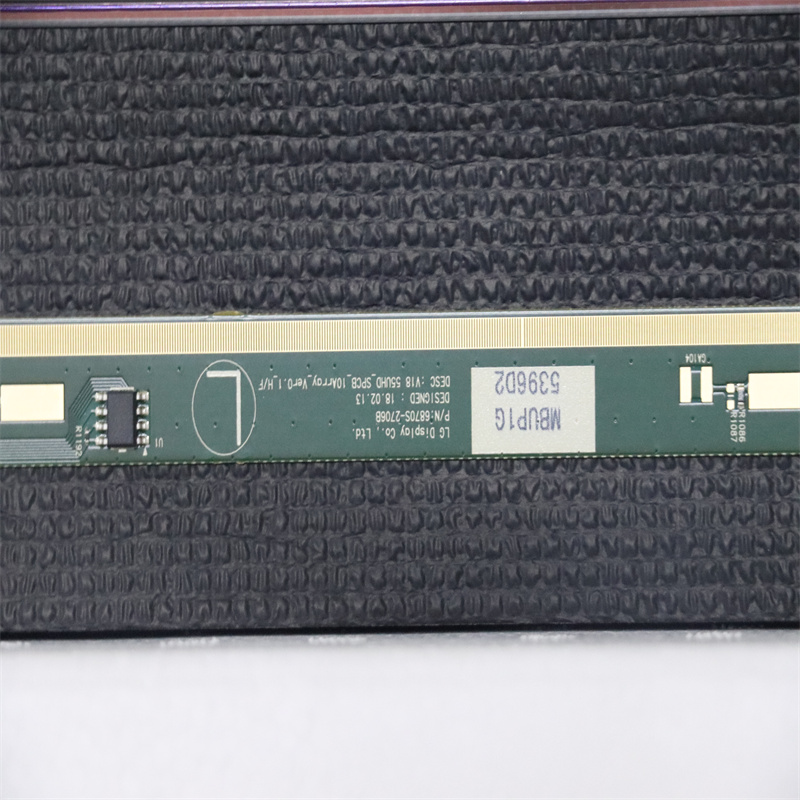

LC550EQY-SLA2 PCB 6870S-2706B 6870S-2707B
|
|
Panel Size
|
55"
|
|
Panel Type
|
a-Si TFT-LCD, CELL
|
|
Resolution
|
3840(RGB)×2160 (UHD) 80PPI
|
|
Pixel Format
|
RGB Vertical Stripe
|
|
Display Area
|
1209.6 × 680.4 (H×V)
|
|
Bezel Opening
|
/
|
|
Outline Size
|
1221.3 × 694.8 × 1.2 (H×V×D)
|
|
Surface
|
Antiglare (Haze 3%), Hard coating (2H)
|
|
Brightness
|
0 cd/m²
|
|
Contrast Ratio
|
1300 : 1 (Typ.) (TM)
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Display Model
|
IPS, Normally Black, Transmissive
|
|
Best View On
|
Symmetry
|
|
Response Time
|
6 (Typ.)(G to G) ms
|
|
Display Colors
|
1.07B 68% NTSC
|
|
Lamp Type
|
No B/L
|
|
Frequency
|
60Hz
|
|
Touch Screen
|
Without
|
|
Panel Weight
|
2.40Kgs (Typ.)
|
|
Interface Type
|
V-by-One 8 lane , 51 pins Connector
|
|
Voltage Supply
|
12.0V (Typ.)
|
|
Enviornment Operating Temp
|
0 ~ 50 °C
|
