HV320WHB-F70

Product Item : HV320WHB-F70
Category： 32inch
HV320WHB-F70

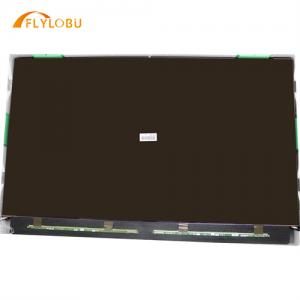

32 Inch Tv Display Panel
Product description：HV320WHB-F70
INQUIRY EMAIL

Product Description

Brand: BOE
Model P/N: HV320WHB-F70

Diagonal Size: 32.0"
Panel Type: a-Si TFT-LCD, CELL , FOB

Resolution: 1366(RGB)×768, WXGA 49PPI
Pixel Format: RGB Vertical Stripe

Active Area: 697.685(W)×392.256(H) mm
Bezel Opening: -

Outline Dim.: 715(H)×411(V) ×1.32(D) mm
Treatment: Antiglare (Haze 1%), Hard coating (3H)

Luminance: 0 cd/m²
Contrast Ratio: 1200:1 (Typ.) (TM)

View Direction: Symmetry
Response Time: 8 (Typ.)(G to G)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: ADS, Normally Black, Transmissive

Plate Thickness: 0.50+0.50 mm
Transmittance: 6.5% (Typ.)(with Polarizer)

Support Color: 16.7M 72% NTSC
Light Source: No B/L

Weight: 852g (Typ.)
Designed For

Frame Rate: 60Hz
Touch Panel: Without

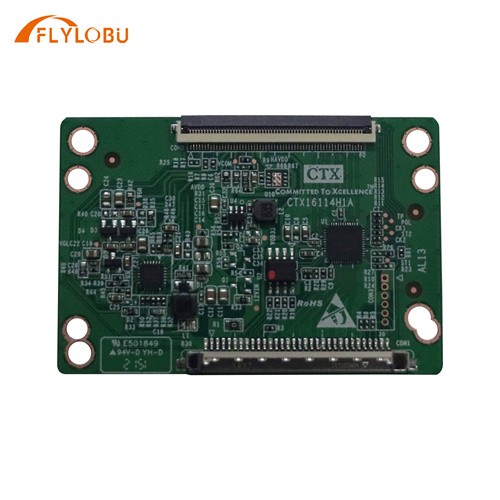

D-IC Detail: COF Built-in 2 source chips

Interface Type: Mini LVDS , 60 pins Connector

Environment: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Our Company

Shenzhen Flylobu Electronics Technology Co., Ltd.

We are located in Shenzhen, China, specializing in Opencell, LCD modules and displays for 5 years。we have a foothold global market around

the world, Opencell and module cover the LG,SAMSUNG, PANDA,SHARP, Innolux, CSOT in major brands. Company main products size for

19-75 inches, products are widely used in TV, display, industrial control system, games monitor and other fields,the company in line with "customer

first, high quality, high quality, fast after-sales service" principle, always adhere to provide customers with high quality products, excellent service,

won the customer more satisfaction and good reputation!Warmly welcome to visit us! Warmly welcome to contact us to provide opportunity to both

of us to understand each otherwhich surely will make you realize your time spending on Flylobo is worthy.

Sincerely looking forward to be your BEST Partner in China!

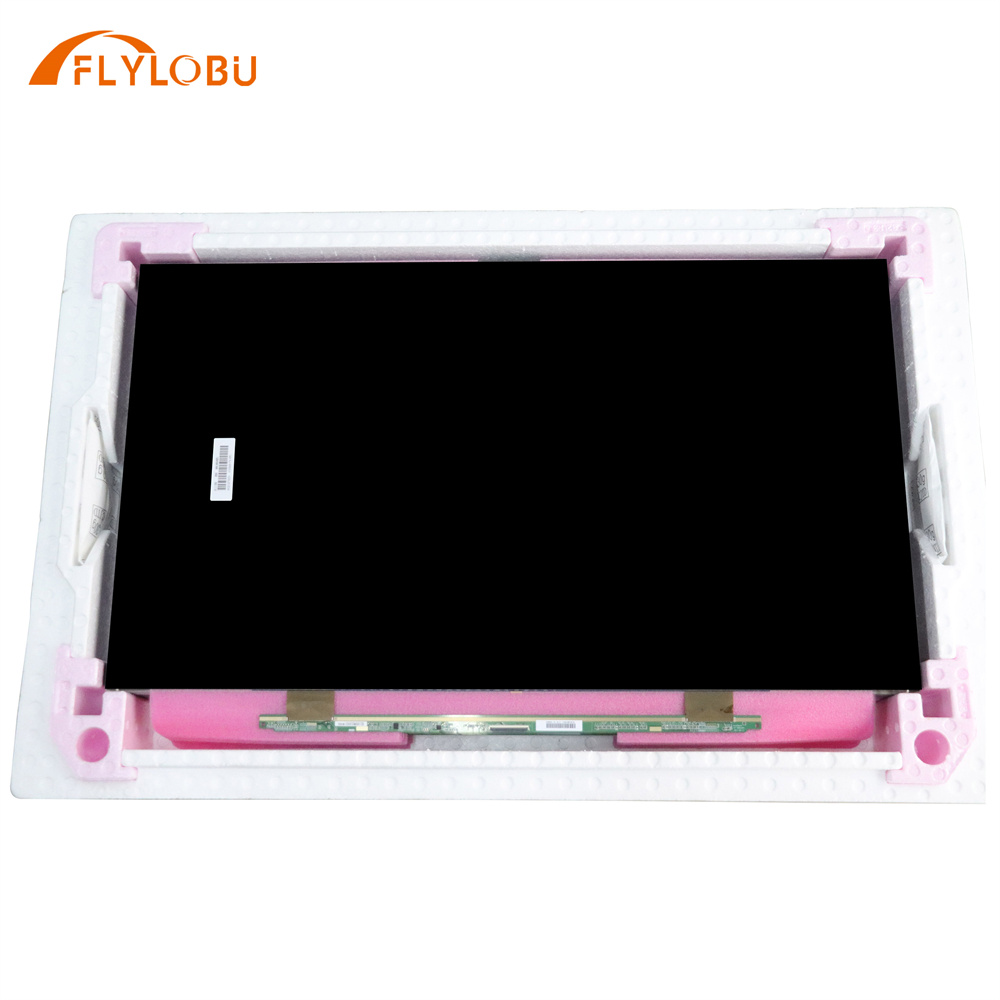

Our warehouse

Packaging&Transportation

Q: May i get a cheaper price?
A：Yes,the more quantity you orderthe cheaper price you get.

Q: What is the delivery term?

A：FOB/EXW

Q: Do you provide samples ? is it free or extra ?
A：SorryNowe could't offer the sample for free charge But if you place an order of full container we will return the sample charge and the cost of freight

Q: What is your terms of payment ?
A：Paypal:T/T:Western Union

Q. What's the deliverv time?
A：After payment in 3-7 daysthat is up to your quanlity and models.
