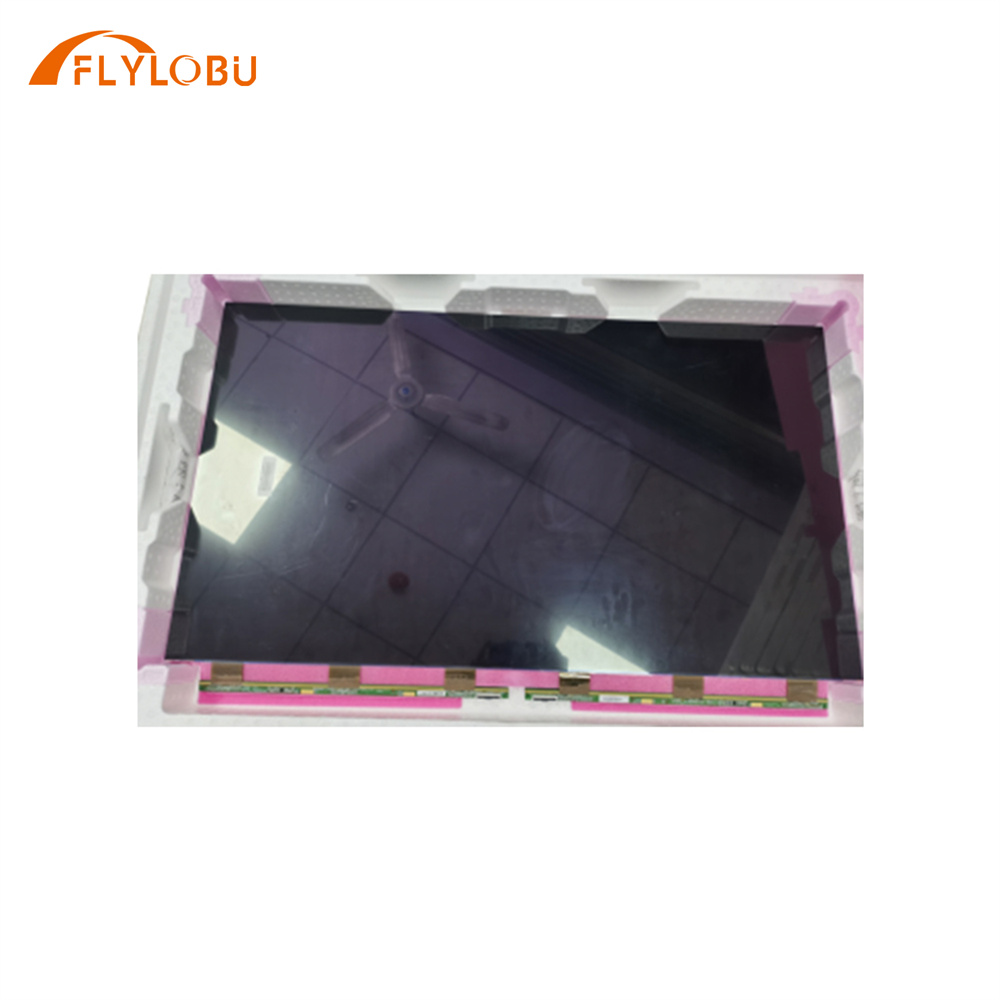

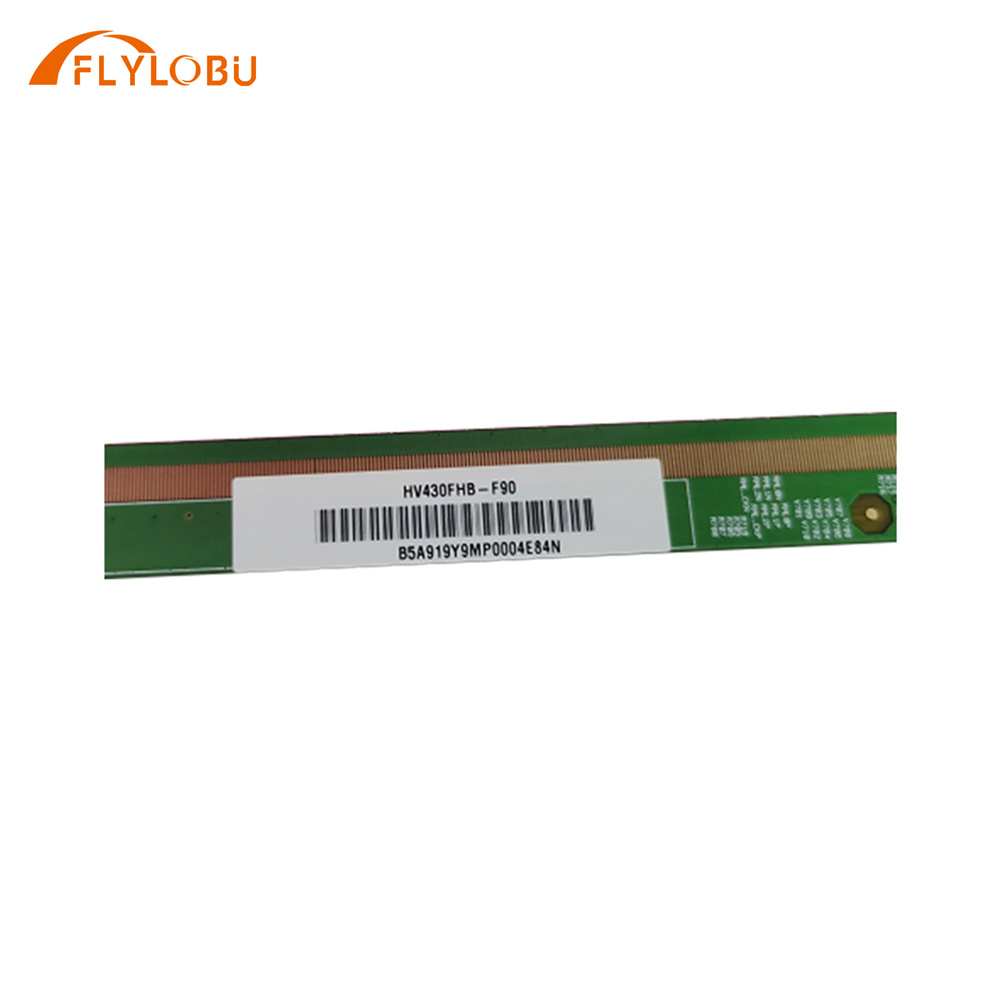

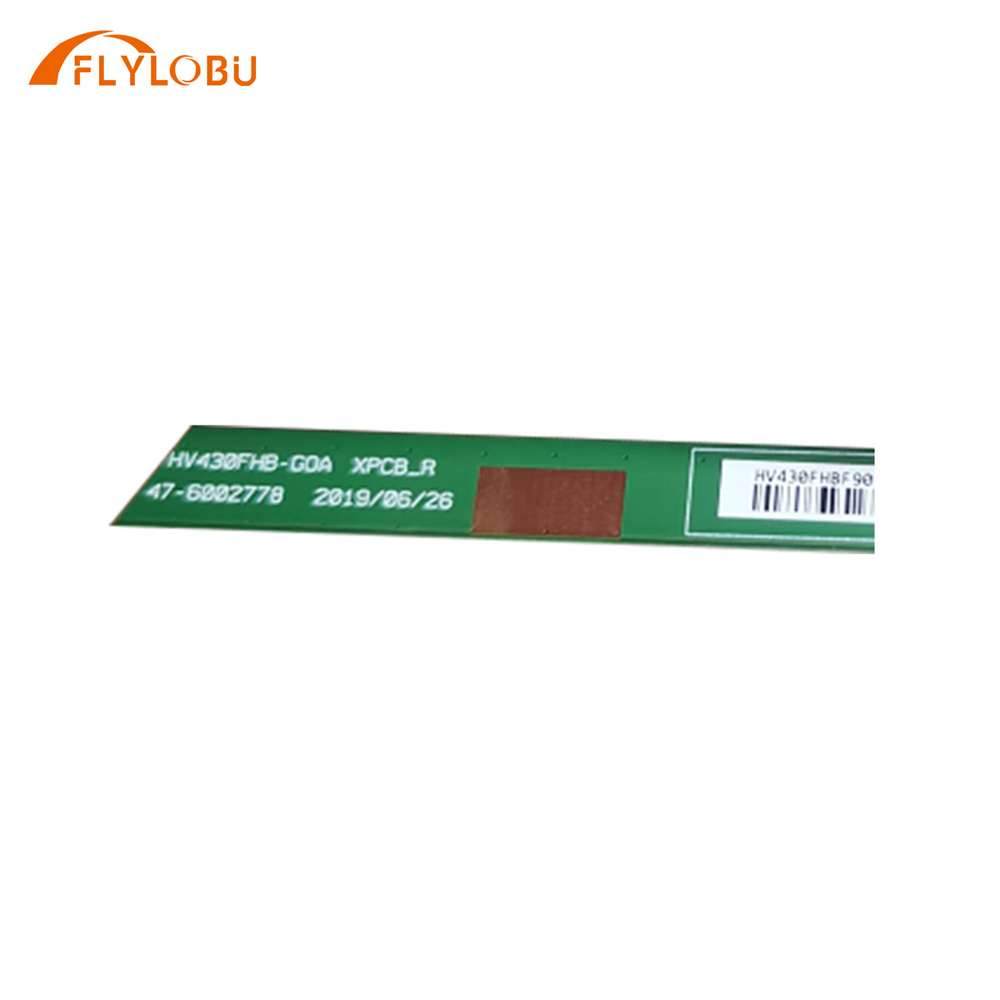

HV430FHB-F90

    • Product Description

Brand
BOE
Model P/N
HV430FHB-F90
Diagonal Size
43"
Panel Type
a-Si TFT-LCD, CELL , FOB
Resolution
1920(RGB)×1080, FHD  51PPI
Pixel Format
RGB Vertical Stripe
Active Area
940.896(W)×529.254(H) mm
Bezel Opening
-
Outline Size
950.896(W)×541.75(H) ×1.4(D) mm
Surface
Antiglare (Haze 1%), Hard coating (3H)
Brightness
0 cd/m²
Contrast Ratio
1200:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
ADS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
8 (Typ.)(G to G)
Glass Depth
0.50+0.50 mm
Transmissivity
6.3% (Typ.)(with Polarizer)
Display Colors
1.07B   72% NTSC
Lamp Type
No B/L
Frequency
60Hz
Touch Screen
Without
Driver IC
COFBuilt-in 6 source chips
Panel Weight
1.51Kgs (Typ.)
Application
Signal Interface
Mini LVDS , 136 pins Connector
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
