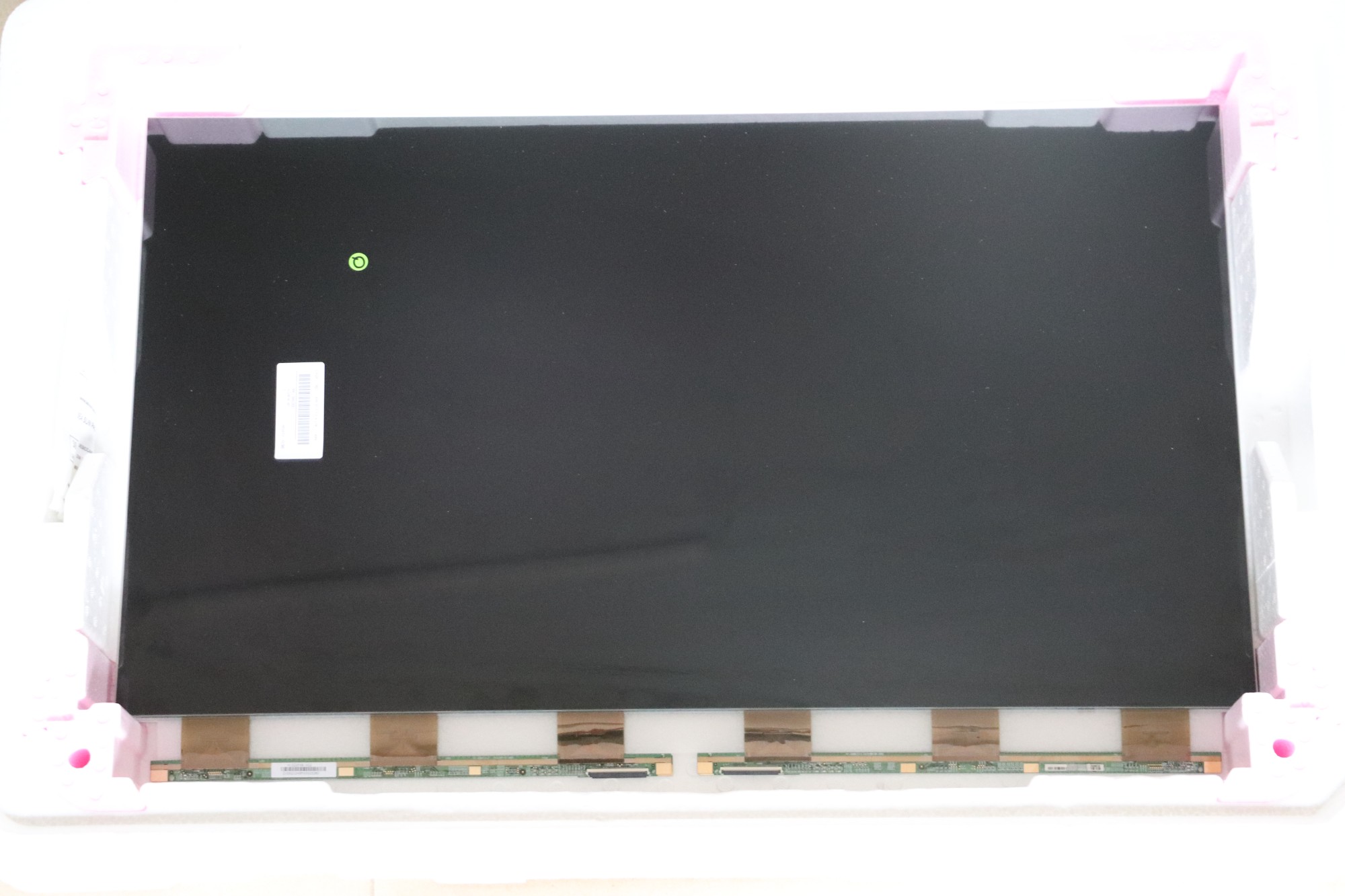

HV320FHB-N02

Model P/N:HV320FHB-N02
Diagonal Size32.0"
Panel Typea-Si TFT-LCD, CELL , FOB
Resolution:1920(RGB)×1080, FHD  69PPI
Pixel Format:RGB Vertical Stripe
Active Area:698.4(W)×392.85(H)
Outline Size:708.4(W)×405.4(H) ×1.36(D) mm
Brightness:0 cd/m²
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Best View on:Symmetry
Glass Depth:0.50+0.50 mm
Display Colors:16.7M   72% NTSC
Frequency:60Hz
Weight:850g (Typ.)
Driver IC:COF Built-in 6 source chips
Signal Interface:LVDS (2 ch, 8-bit) , 51 pins Connector
Input Voltage:12.0V (Typ.)

Environment:Operating Temp 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
