LC420DUJ-SGE1

Product Item : LC420DUJ-SGE1
Category： 43inch

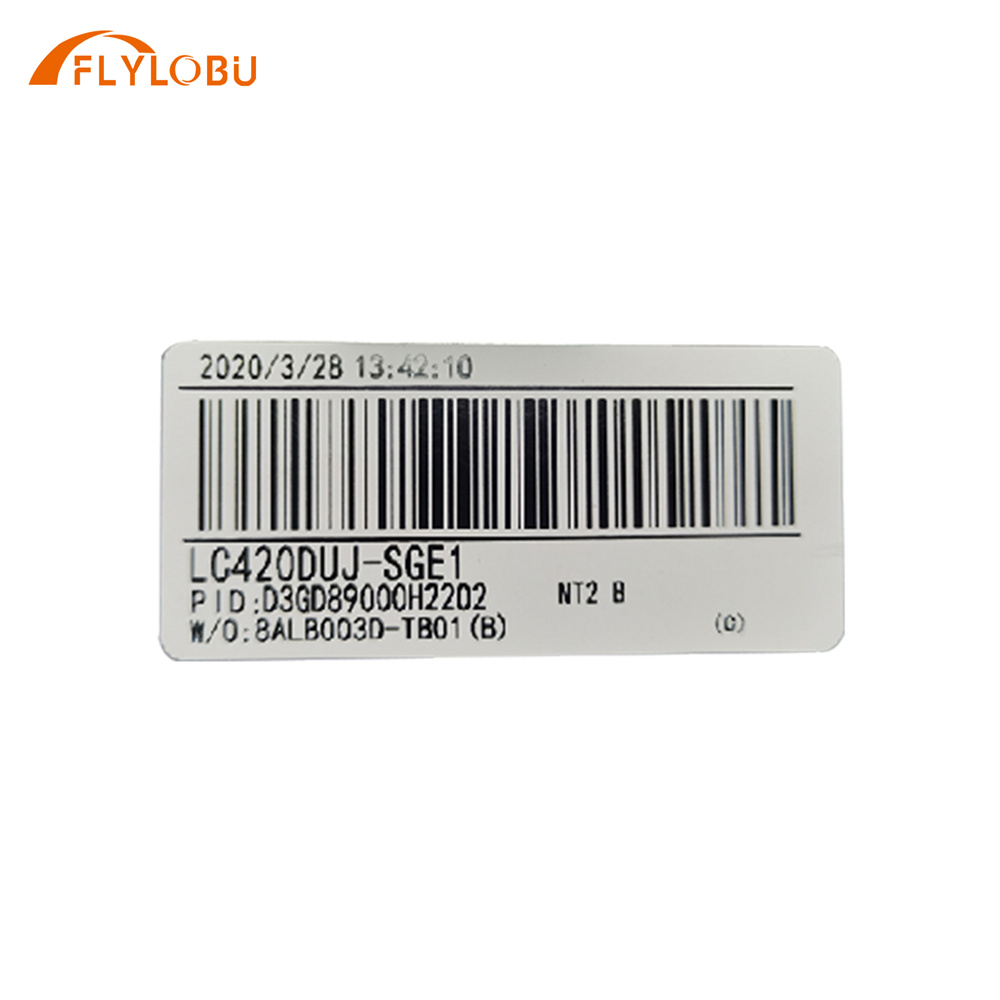

LC420DUJ-SGE1

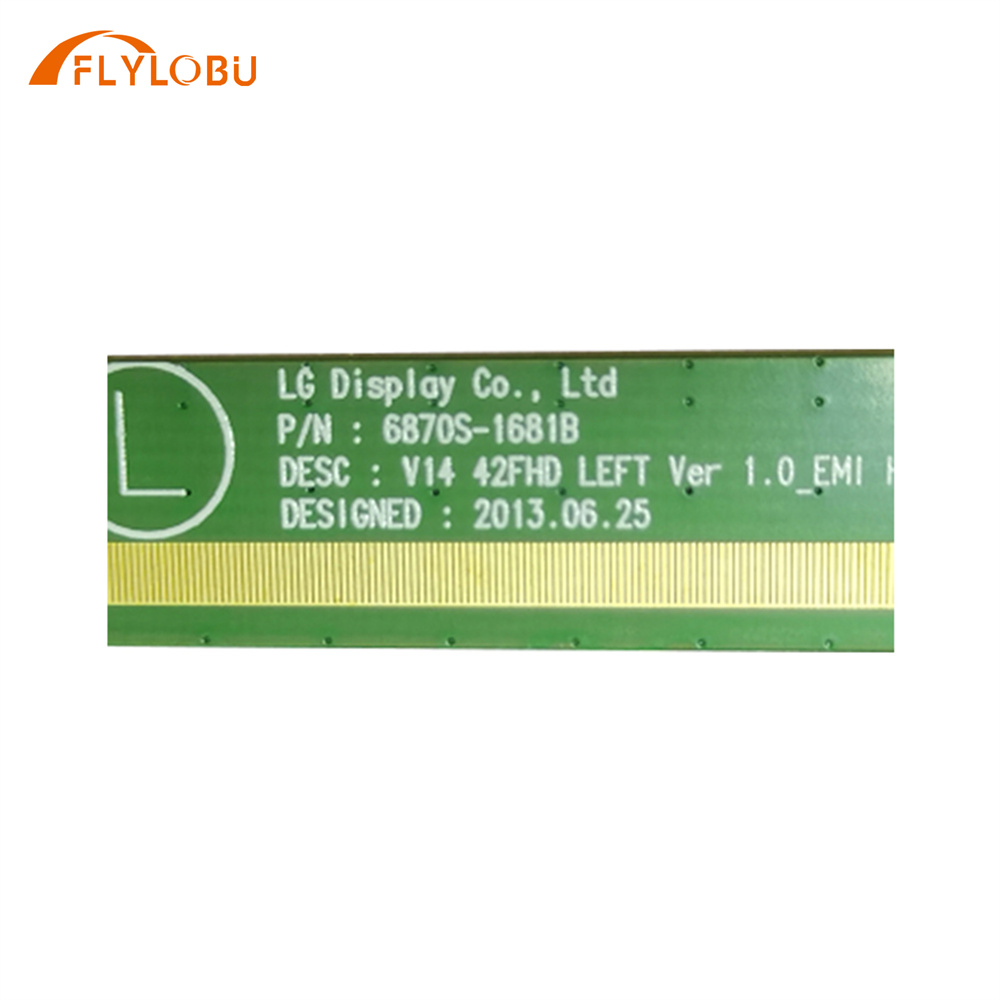

6870-1681B

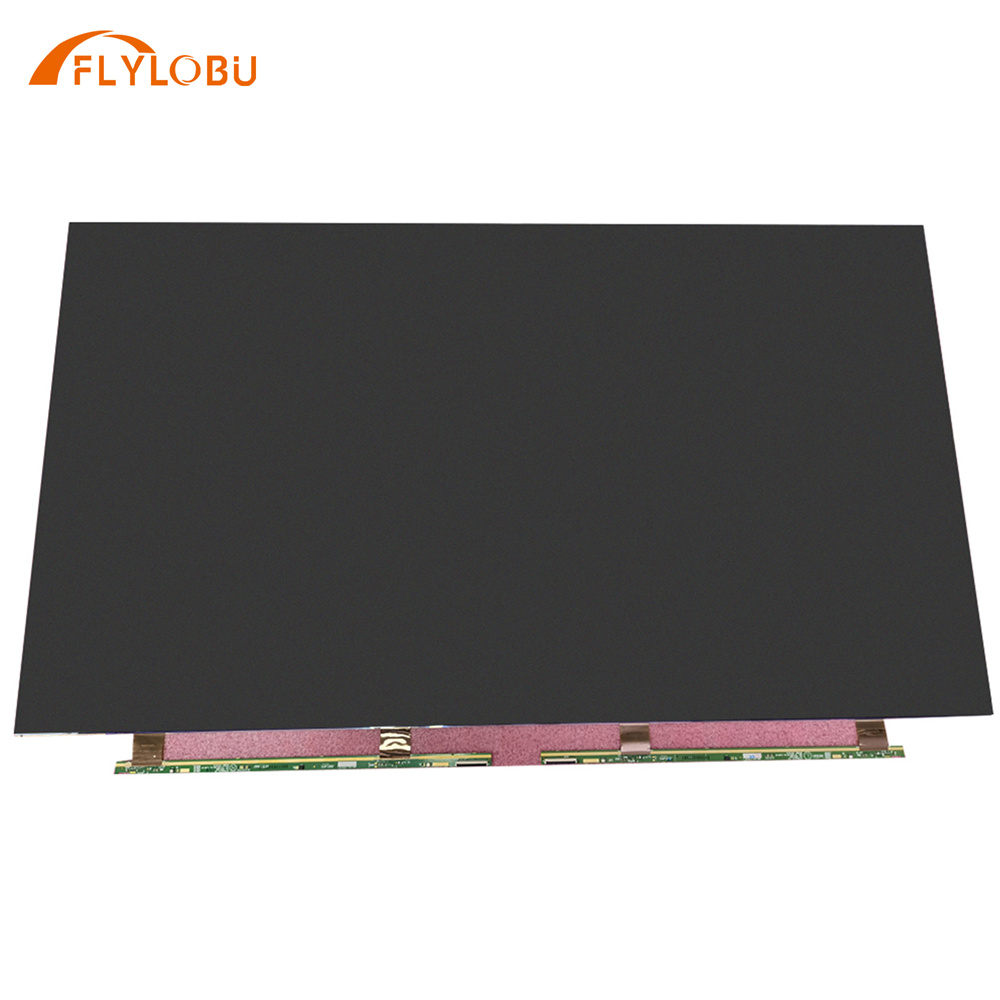

42INCH LED TV PANEL REPAIR
Product description：LC420DUJ-SGE1
INQUIRY EMAIL

Product Description

Brand: LG Display
Model P/N: LC420DUJ-SGE1

Diagonal Size: 42"
Panel Type: a-Si TFT-LCD, CELL , FOB

Resolution: 1920(RGB)×1080, FHD 52PPI
Pixel Format: RGB Vertical Stripe

Active Area: 927.936(W)×521.964(H) mm
Bezel Opening: -

Outline Size: 943.6(W)×538.3(H) ×1.4(D) mm
Surface: Antiglare (Haze 1%), Hard coating (3H)

Brightness: 0 cd/m²
Contrast Ratio: 1200:1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Min.)(CR≥10)
Display Mode: IPS, Normally Black, Transmissive

Best View on: Symmetry
Response Time: 6 (Typ.)(G to G)

Glass Depth: 0.50+0.50 mm
Transmissivity: 6.35% (Typ.)(with Polarizer)

Display Colors: 16.7M 69% NTSC
Lamp Type: No B/L

Frequency: 60Hz
Touch Screen: Without

Driver IC: COF Built-in 4 source chips

Panel Weight: 1.50Kgs (Typ.)
Application

Signal Interface: LVDS (2 ch, 8-bit) , 51 pins Connector

Input Voltage: 12.0V (Typ.)

Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
